Bundle offer comprising

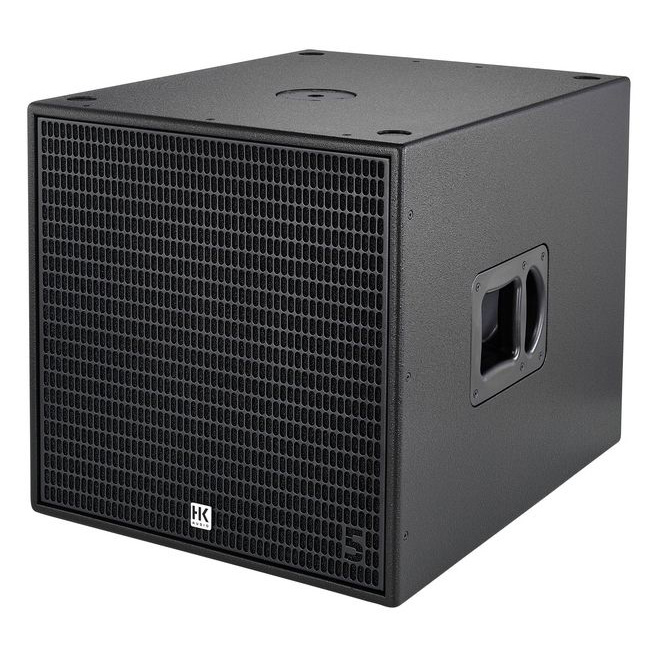

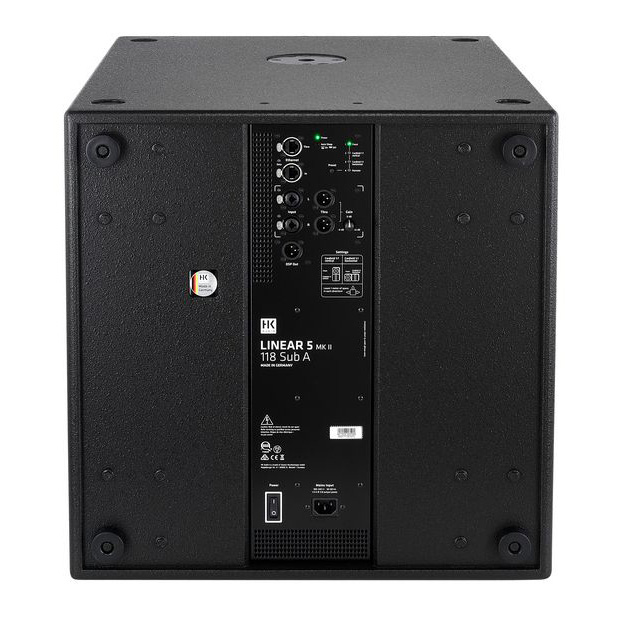

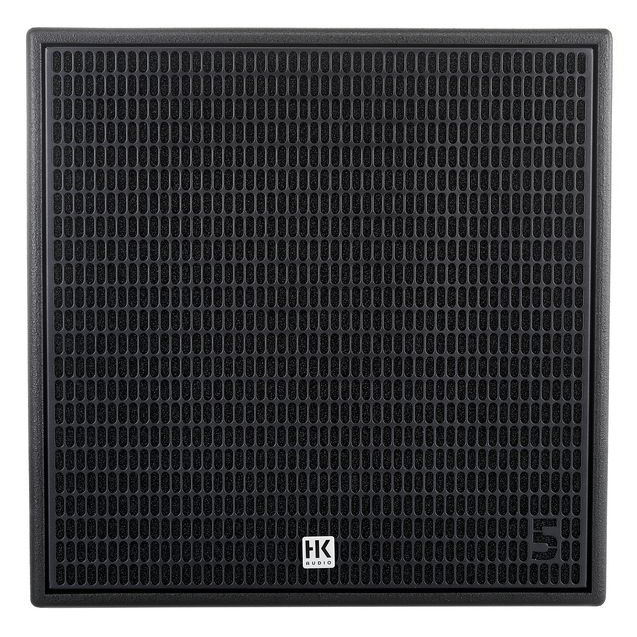

Active Bass Reflex Speaker

• Drivers: 18" woofers with 4" voice coil
• 1000 W Class-D amplifier
• Maximum level: 131 dB
• Frequency range: 38 - 120 Hz (+/- 10 dB)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
• Filter presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote

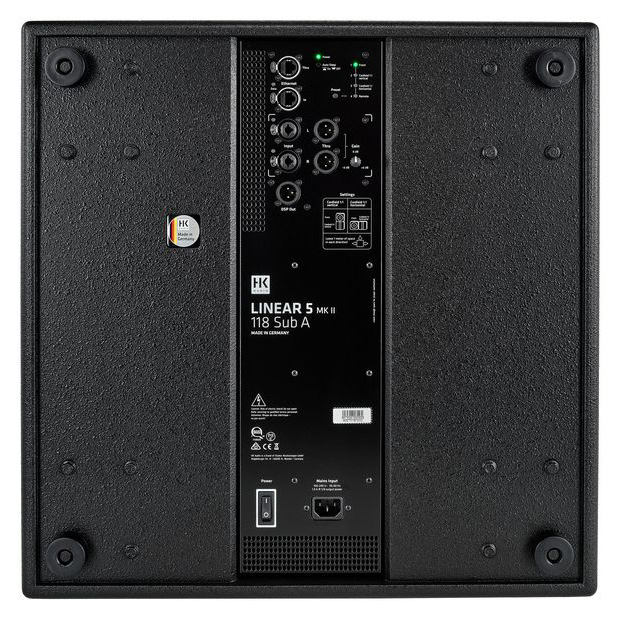

• Connection panel with 2x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x Ethernet Thru, 2x XLR Thru and 1x XLR DSP Out

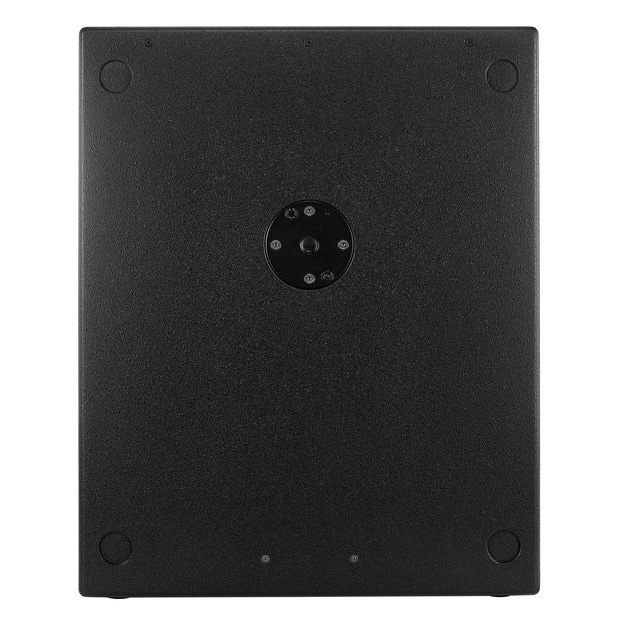

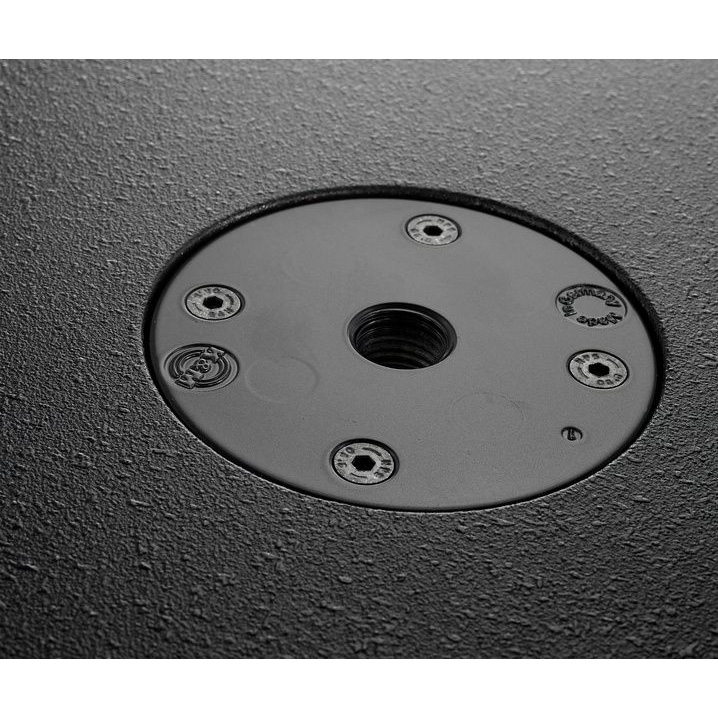

• M20 high stand flange
• 2 Handles
• Housing material: Birch multiplex
• Dimensions (W x H x D): 550 x 560 x 685 mm
• Weight: 41.6 kg
• Colour: Black
• Matching cover: art. 559349 (not included)

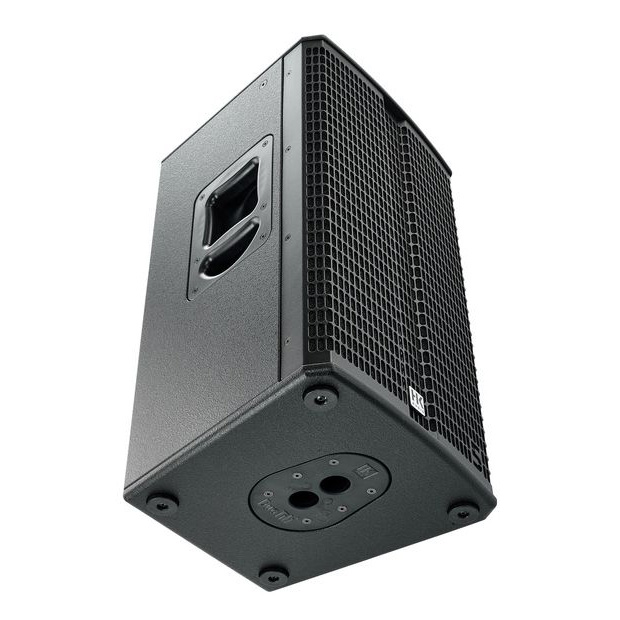

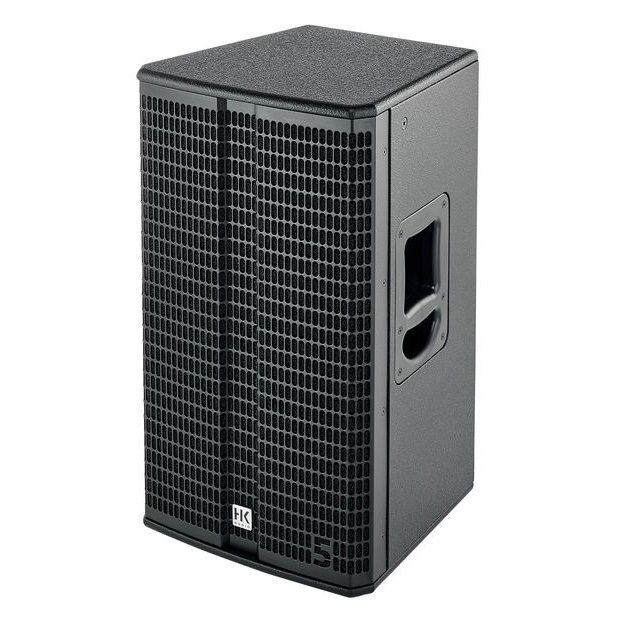

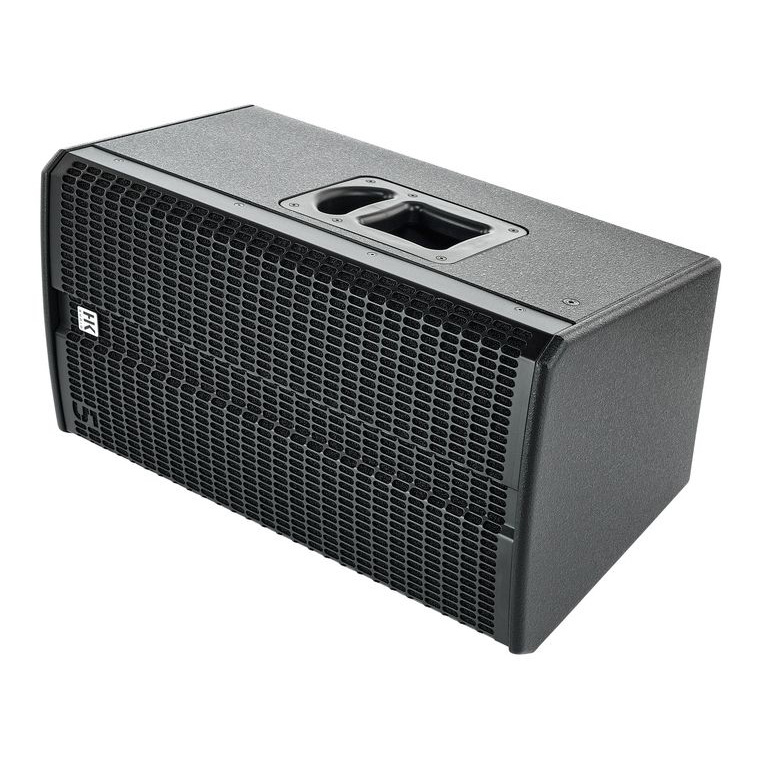

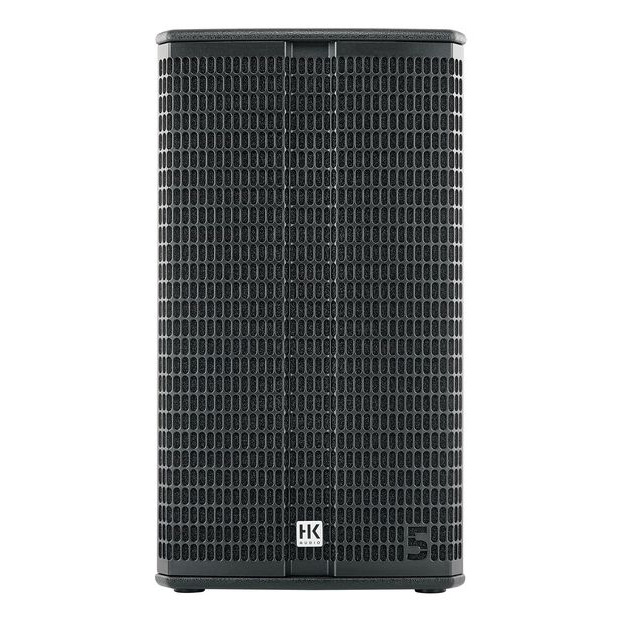

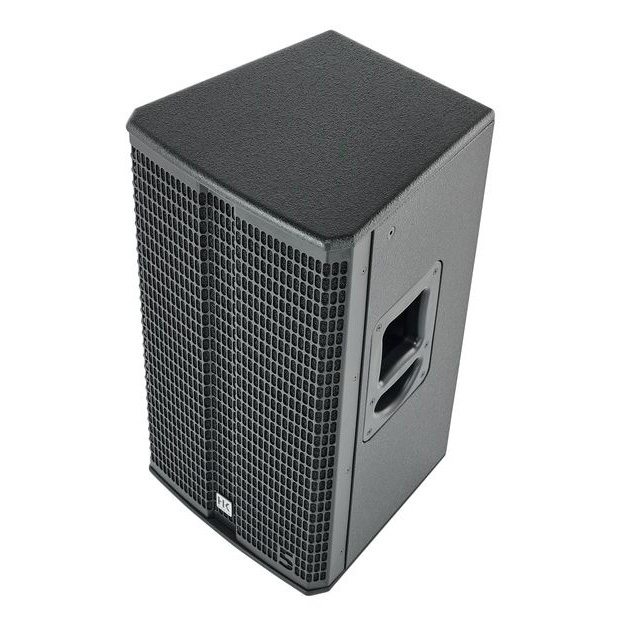

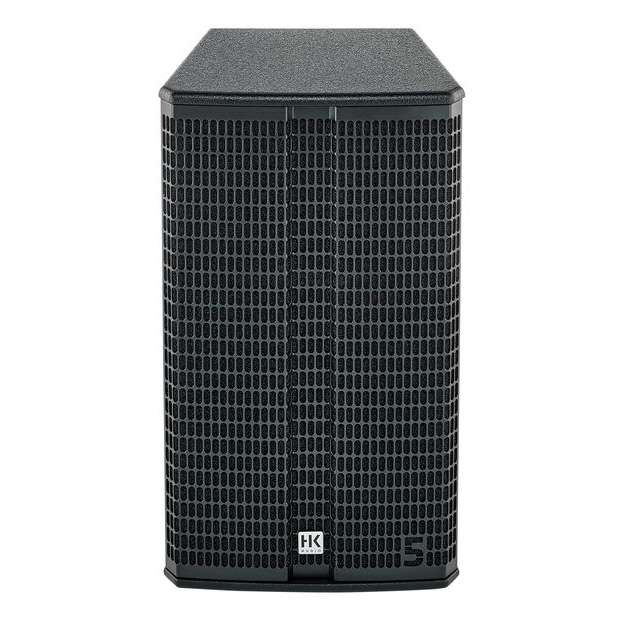

Active Multifunctional Speaker

• With built-in 1200 W Class D power amplifier
• Speaker configuration: 1x 12" LF + 1" HF with 1.75" voice coil
• Frequency range: 55 - 19000 Hz (+/- 10 dB)
• Maximum level: 135 dB
• FIR crossover with 72 db/oct
• Remote controllable via internal DSP and network capability
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

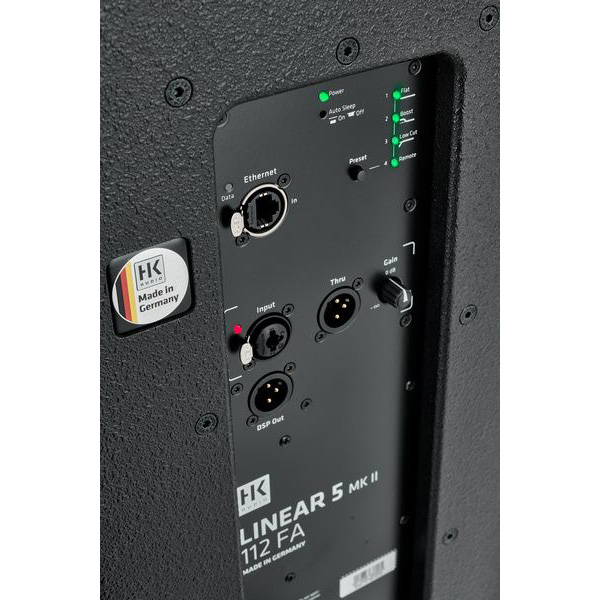

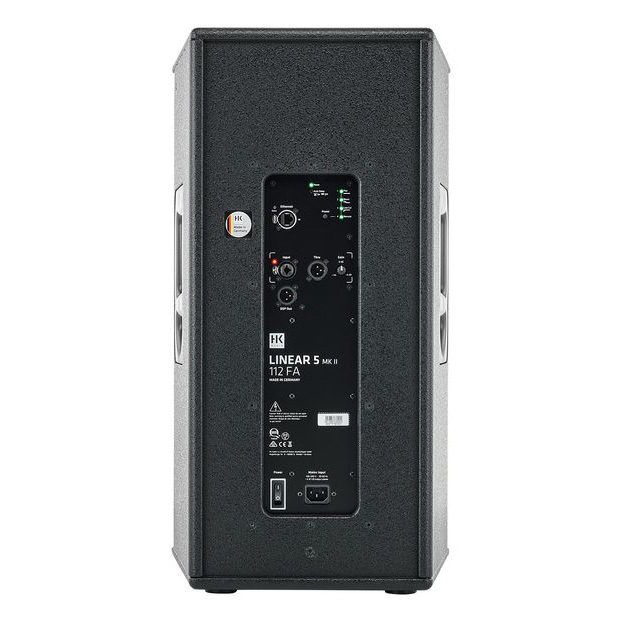

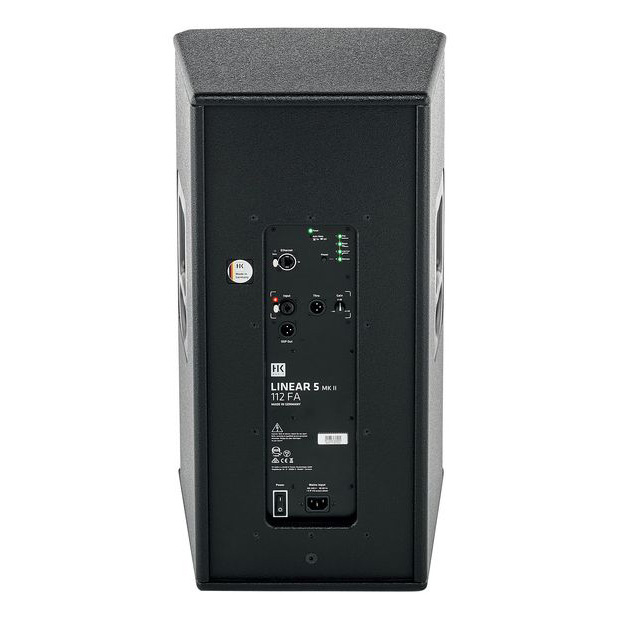

• Connector panel with 1x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x XLR Thru, 1x XLR DSP Out
• Switchable EQ (Flat, Boost, Low Cut, Remote)
• Dispersion angle: 60° x 40° (H x V, rotatable)
• Housing material: Birch plywood/MDF
• Flying points: 3x M8

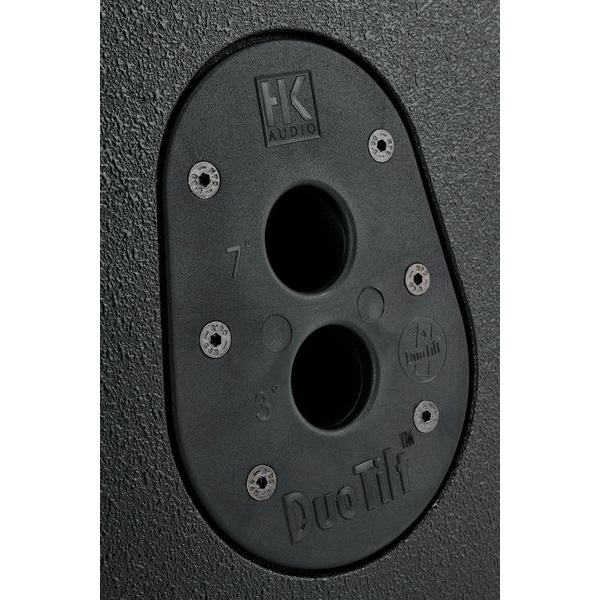

• DuoTilt stand flange

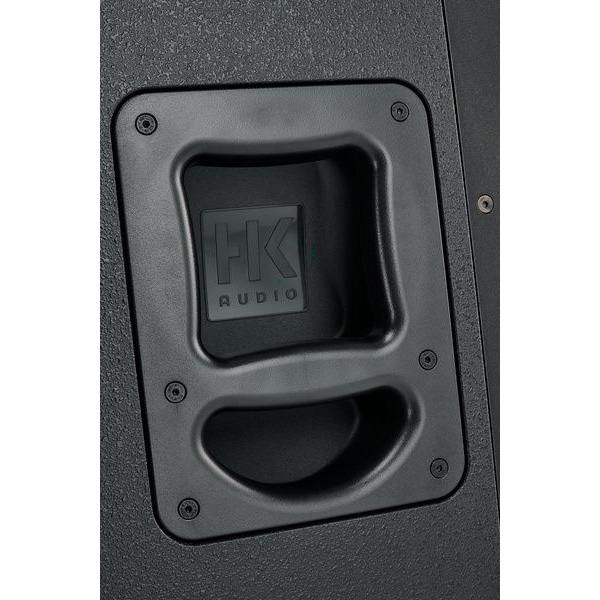

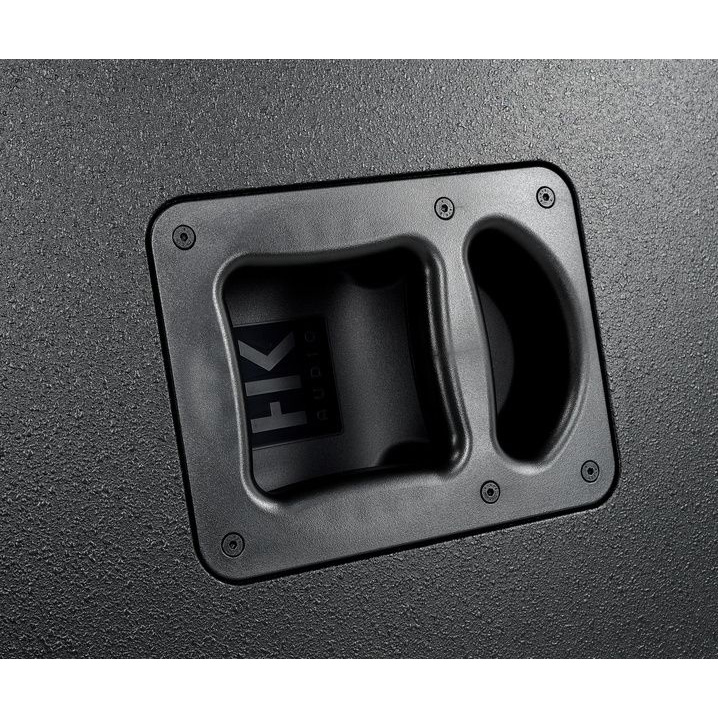

• 2 Handles
• Dimensions (W x H x D): 370 x 670 x 365 mm
• Weight: 21.9 kg
• Colour: Black
• Matching cover: art. 559352 (not included)

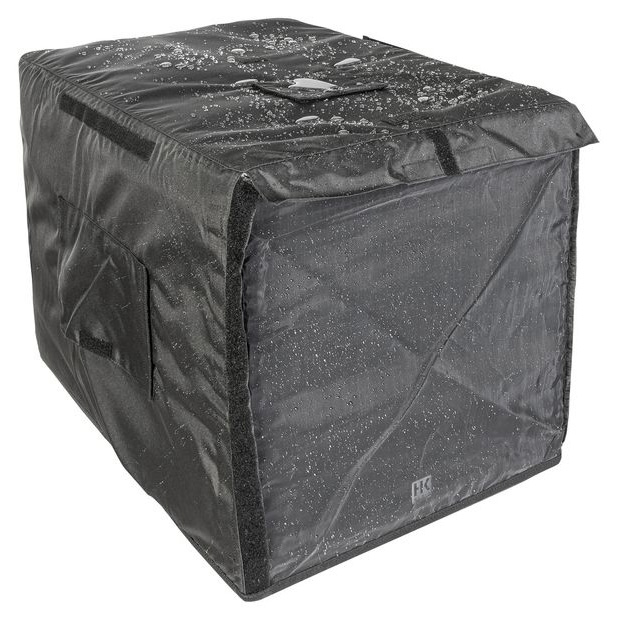

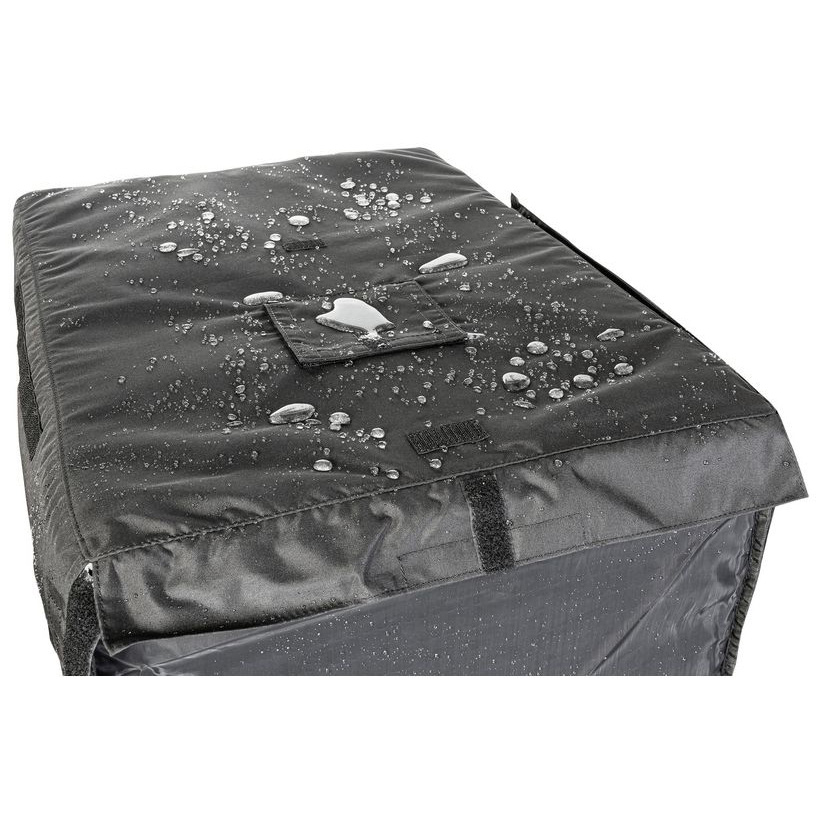

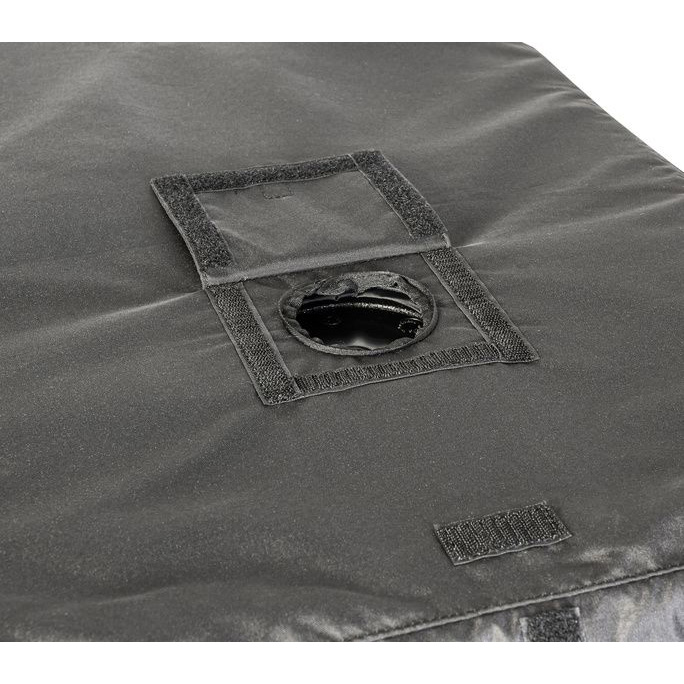

Weather Protection Cover

• For Linear 5 MKII 118 Sub A speakers
• Waterproof
• Transparent viewing windows
• Lockable access for handle and installation thread
• Colour: Black

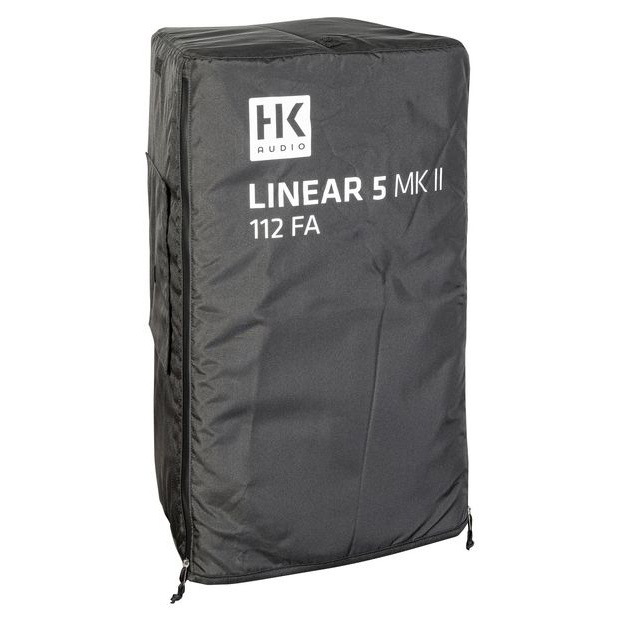

Weather Protection Cover

• For Linear 5 MKII 112 FA speakers
• Waterproof
• Transparent viewing window
• Lockable access for handle and installation thread
• Colour: Black

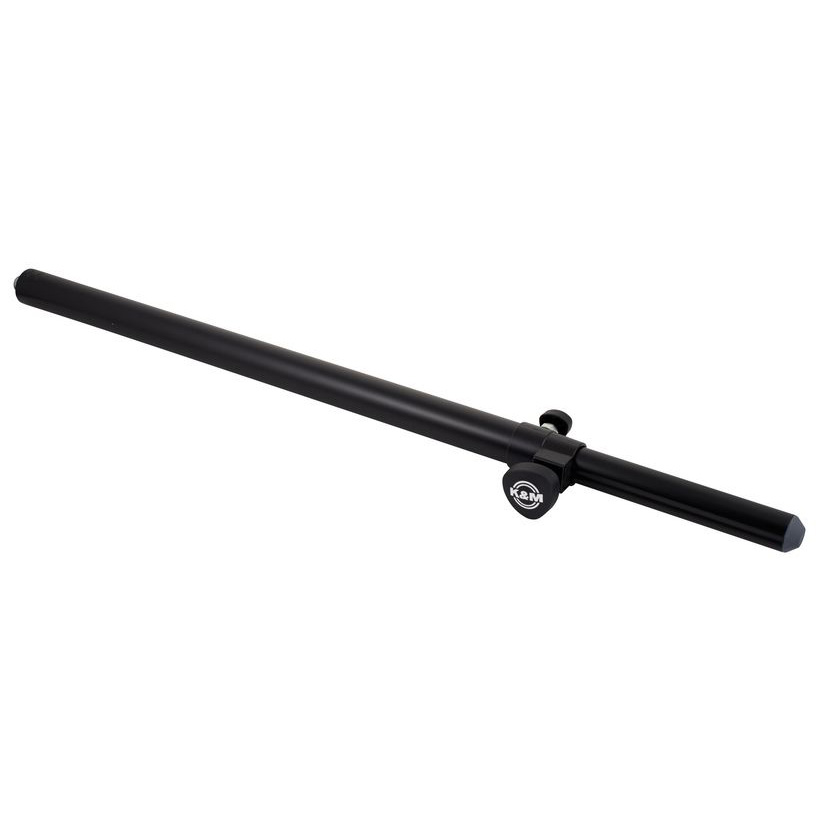

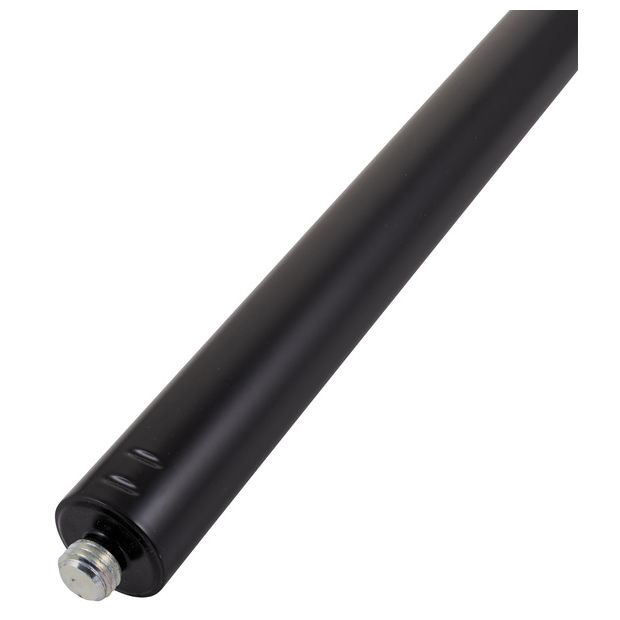

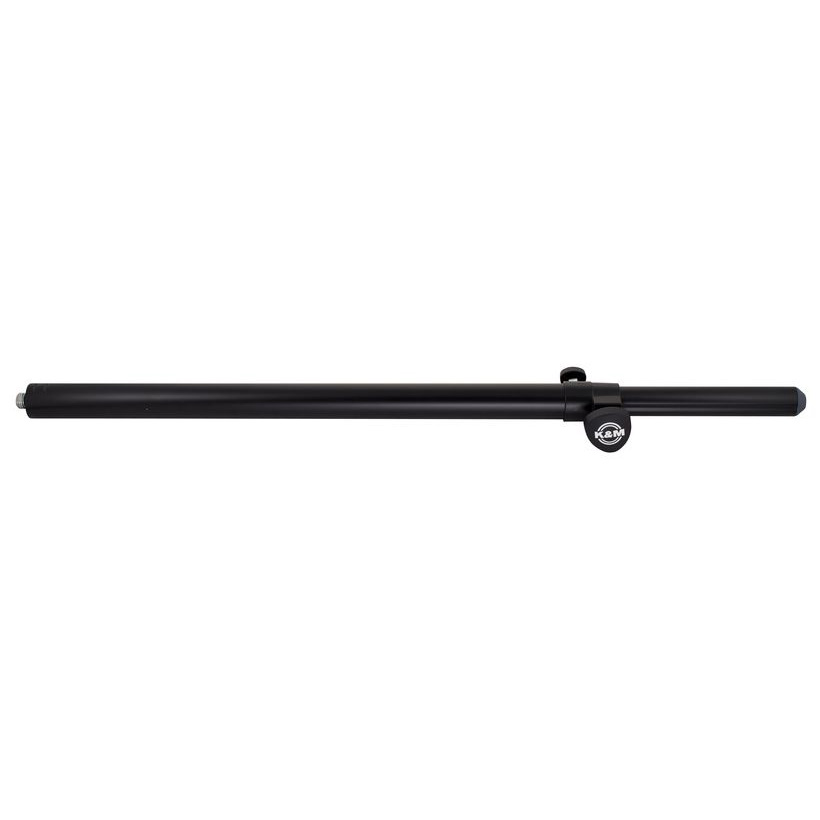

Distance Rod

• Steel tube combination to connect satellite systems
• Load bearing capacity up to 35 kg
• With M20 threaded bolts
• To attach connector plate 24116 (Article Nr 104910 -not included)
• Adjustable height from 905 to 1450 mm
• Colour: Black

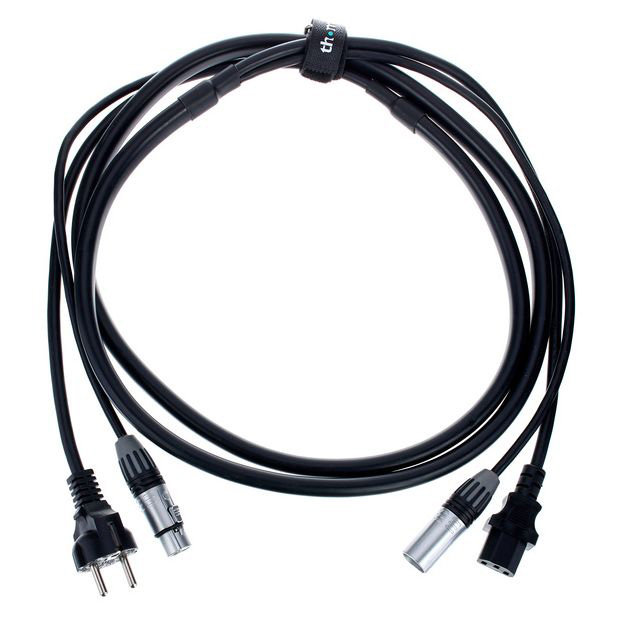

Power core cable

• With grounding contact/XLR female to IEC/XLR male Plug
• For parallel transmission of mains current and balanced audio signal
• 2x AWG24 / Power - 3x1.5 mm²
• Outer diameter: 16 mm
• Split length per side: 1 m
• Total length: 2.5 m
• Colour: Black
